Structure & Sealing Performance
It features a PE pipe connection end and precision machined female thread end. Built-in locking ferrule and stepped sealing ring ensure tight connection and superior leakproof performance, eliminating joint water leakage effectively.
Two Connection Types
1. Hot-melt Type:
Forms integrated fused joints with high pressure resistance and stable structure, perfect for concealed pipelines and permanent water supply systems.
2. Compression Quick-connect Type:
No tools or glue required for installation. Fast to assemble and disassemble, suitable for exposed pipes, temporary water supply and emergency pipeline repair.
Material & Advantages
Crafted from premium PE100-grade HDPE, this fitting is non-toxic, eco-friendly, corrosion and pressure resistant, meeting drinking water transportation standards. The precision threads resist slipping for long-term durability. Detachable threaded design simplifies later maintenance and part replacement without pipeline damage.
Common Specifications
Specification Standard:
PE outer diameter × thread size
Main Sizes:
20×1/2", 25×3/4", 32×1", 40×1 1/4"
Application:
Widely applied in building water supply, agricultural & landscape irrigation, municipal & industrial water systems, and water tank/tower pipeline connection.

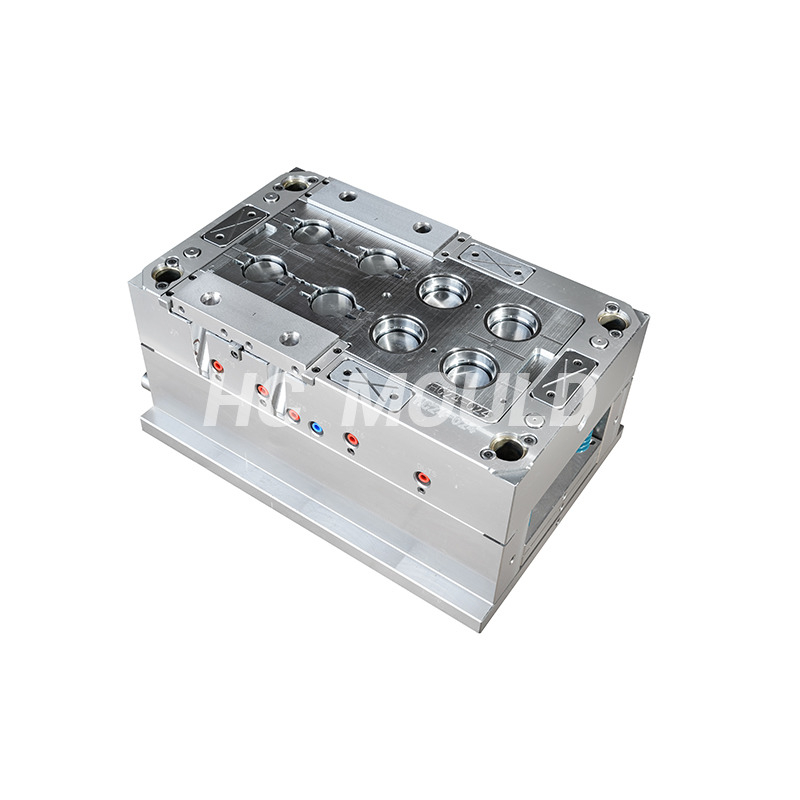

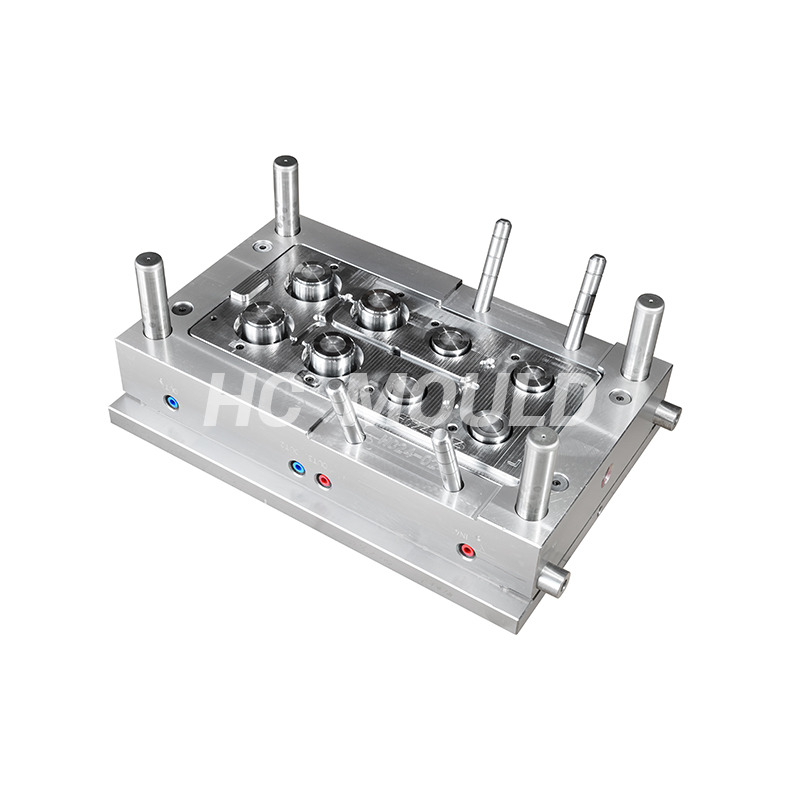

Number of mold cavities | Mold steel | Mold life | Flow channel type | Molding cycle |
One out of eight | 2738 + standard mold frame | 80w | Cold flow channel large gate | 90s |
