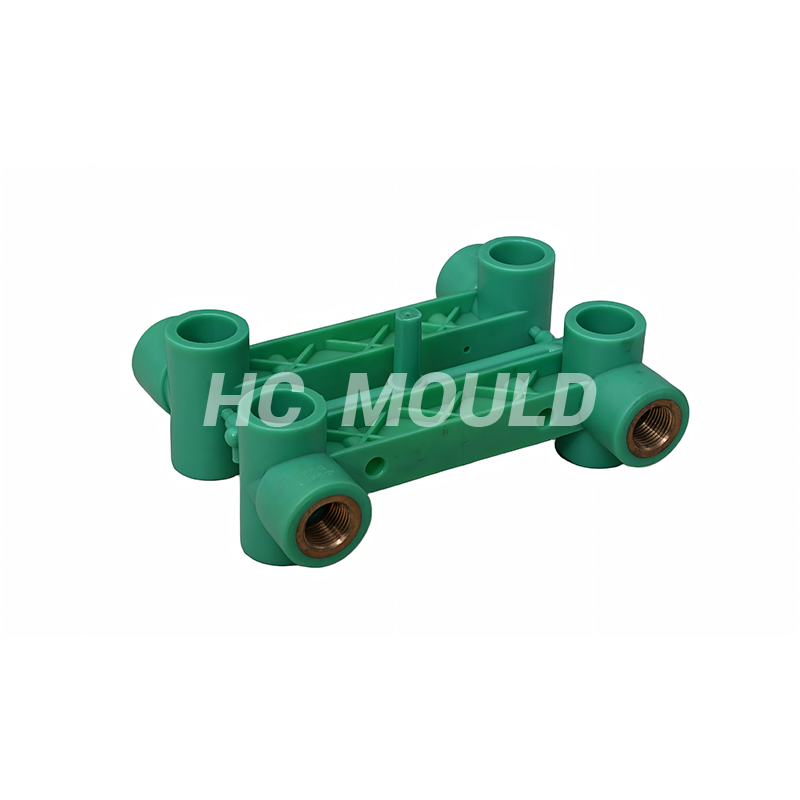

Functions & Sealing Performance
1.Precise Positioning:
It keeps the center distance of two outlets (hot-cold water ports) at standard 150 mm on the same horizontal plane. Critical for shower mixers, basin faucets and water heaters, it avoids installation difficulties and leakage caused by offset spacing.
2.Simplified Installation:
Combines two separate single elbows into one integrated piece. It cuts installation time, reduces reliance on worker skills and improves installation accuracy.
3.Main Application Locations:
Shower zones: Hot-cold water connection for shower mixers, and under wash basins: Water supply connection for basin faucets.
Key Product Features
1.Safe PPR Material:
Made of polypropylene random copolymer (PPR). Non-toxic, corrosion-resistant and scale-resistant, it meets drinking-water standards and delivers long service life.
2.Mounting-Base Design:
The integrated base can be fastened to walls or formwork with screws, preventing outlet displacement during hot-fusion welding and subsequent construction.
3.Female Thread Outlets:
Female-thread outlets connect directly to male-thread accessories such as angle valves and flexible hoses for tight, stable connections.
4.90° Bend:
Standard 90-degree turn keeps neat pipe routing and saves in-wall space.
Common Specifications
Specification Standard:
PPR pipe size × thread size.
- 20 × 1/2":
Most popular household size, fits 20 mm outer-diameter PPR pipe with 1/2-inch female thread.
- 25 × 1/2":
Fits 25 mm outer-diameter PPR pipe with 1/2-inch female thread, for main pipelines and high-flow demand.

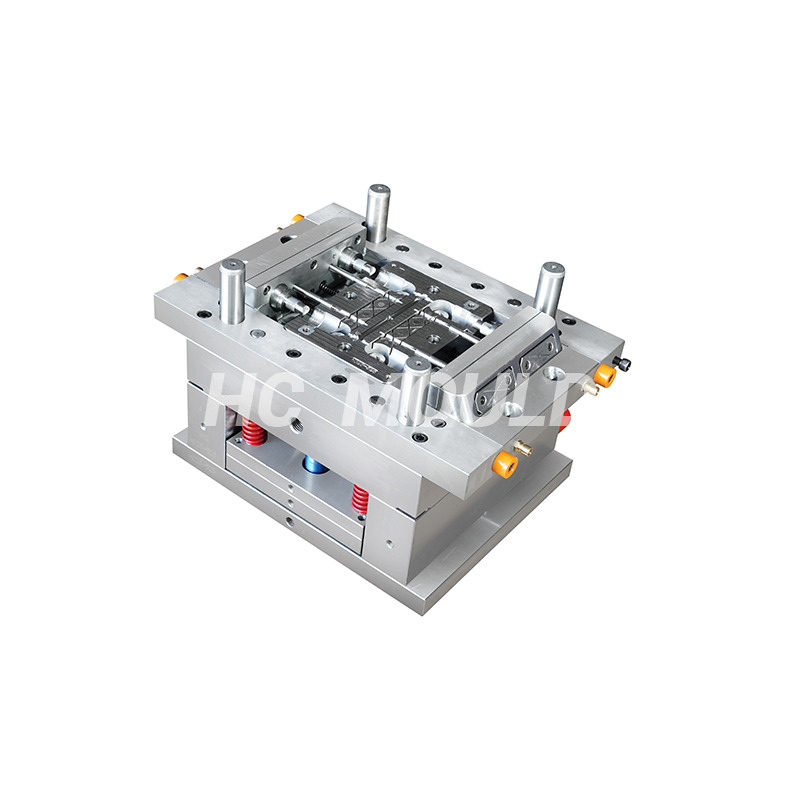

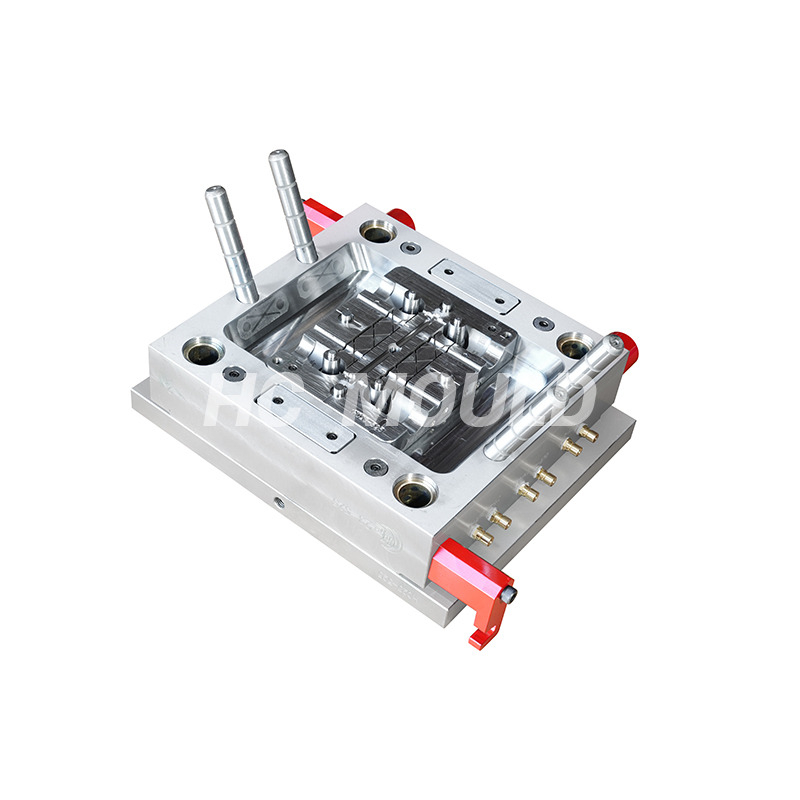

Number of mold cavities | Mold steel | Mold life | Flow channel type | Molding cycle |
One out of two | 2344 + standard mold frame | 150w | Cold flow channel large gate | 130s |
