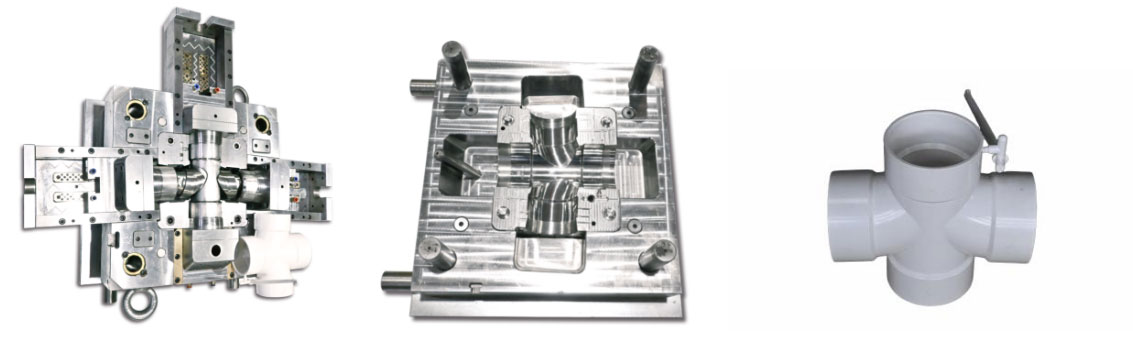

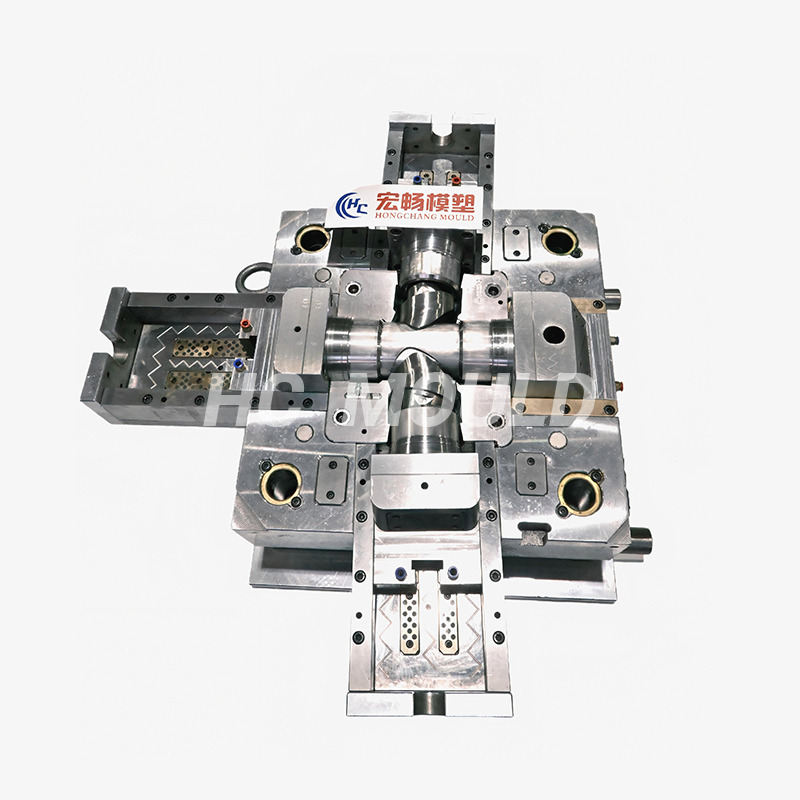

PVC Horseshoe Four-Way Fitting Mould

Structure & Sealing Performance

1. 3D Spatial Connection:

Different from ordinary flat four-way fittings, it adopts three-dimensional structure to realize multi-angle and multi-direction pipe intersection.

2.Flow-Optimized Inner Profile:

Streamlined inner channels reduce water-flow resistance and impact during convergence, lower flow noise and minimize debris accumulation and blockage at joints.

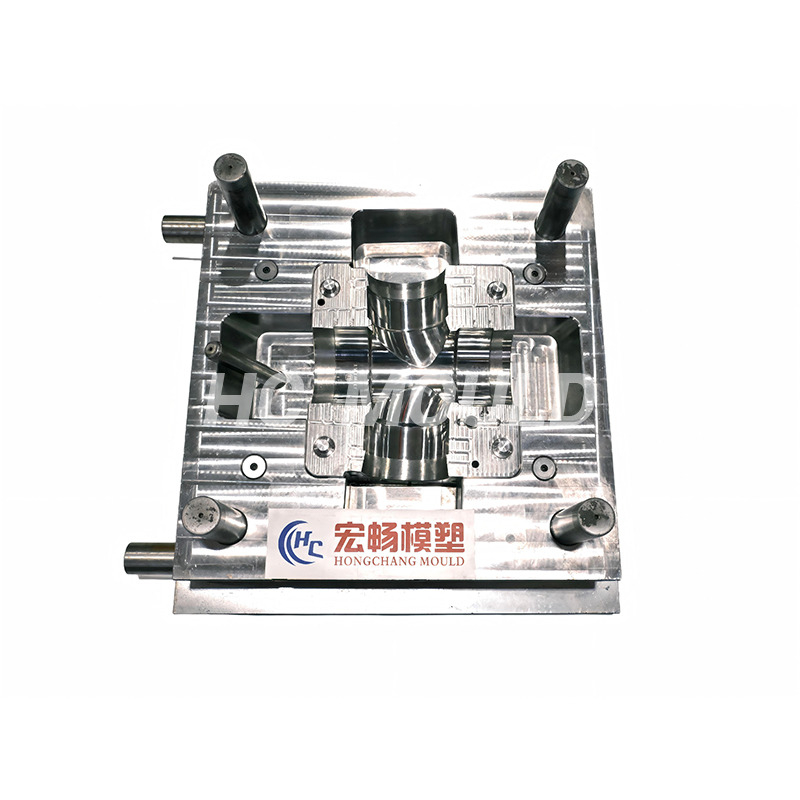

3.Horseshoe Core-pulling Structure:

Formed by complex double-horseshoe core-pulling injection-molding molds, which gives the fitting its name. It ensures smooth inner surface and stable mechanical structure.

Material & Advantages

1.High-Quality Raw Material:

Made of sanitary-grade PVC-U resin. Light-weight, high-strength, corrosion-resistant and anti-scaling.

2.Eco-friendly Formula:

Plasticizer-free with eco-friendly calcium-zinc stabilizer. Non-toxic and odor-free, complying with health standards for water conveyance pipes.

3.Reliable Sealing:

Certain models are equipped with pure rubber gaskets featuring good ageing resistance for effective leak-proof performance.

Application Scenarios

Thanks to its unique 3D converging capability: Building drainage systems, Municipal sewage projects, and Industrial fluid conveyance.

Common Specifications & Colors

Sizes cover mainstream drainage pipe outer diameters: D50, D75, D110, D160, D200 (D stands for nominal outer diameter in mm).
