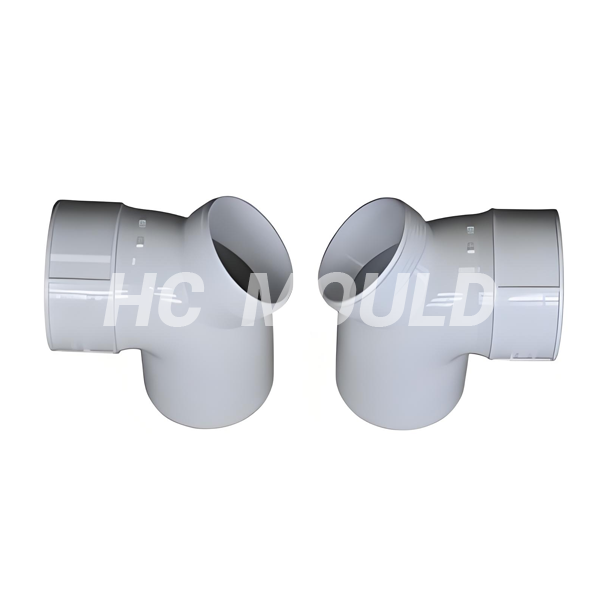

Core Functions & Advantages
Inspection & Unblocking:
When blockage occurs at pipe bends, you only need to open the inspection cover instead of disassembling pipes. Cleaning tools can be applied directly for easy later-stage maintenance.
Standard 90-Degree Turn:
Realizes right-angle direction change for smooth drainage flow.
Material Performance:
Made of high-quality PVC-U material. Features corrosion resistance, smooth inner wall against scale build-up and long service life.
Common Specifications
Covers mainstream drainage pipe sizes:
· Small size: D50, D75
· Regular size: D110
· Large size: D160, D200
(Note: D stands for nominal outer diameter in millimetres
Application Scenarios
Widely used in building internal drainage systems:
Drain risers:
Installed at riser bottom or every several floors for main pipe unblocking.
Horizontal pipe bends:
Fitted on long horizontal drain pipes to avoid debris accumulation and blockage.
Toilet & sanitary ware outlets:
Used at drainage bends of toilets and sanitary fixtures to prevent foreign-object jamming.

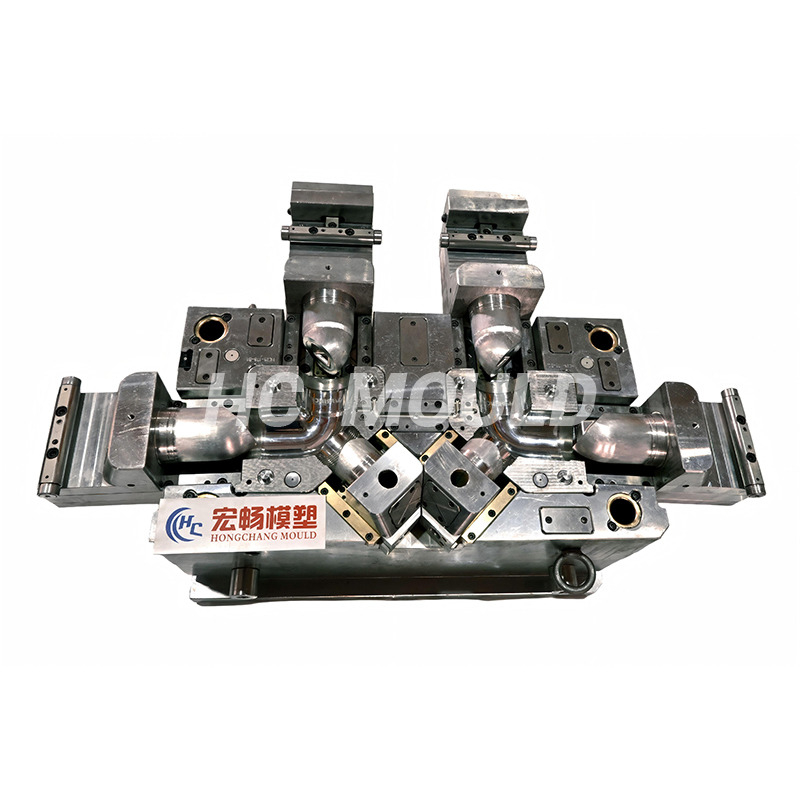

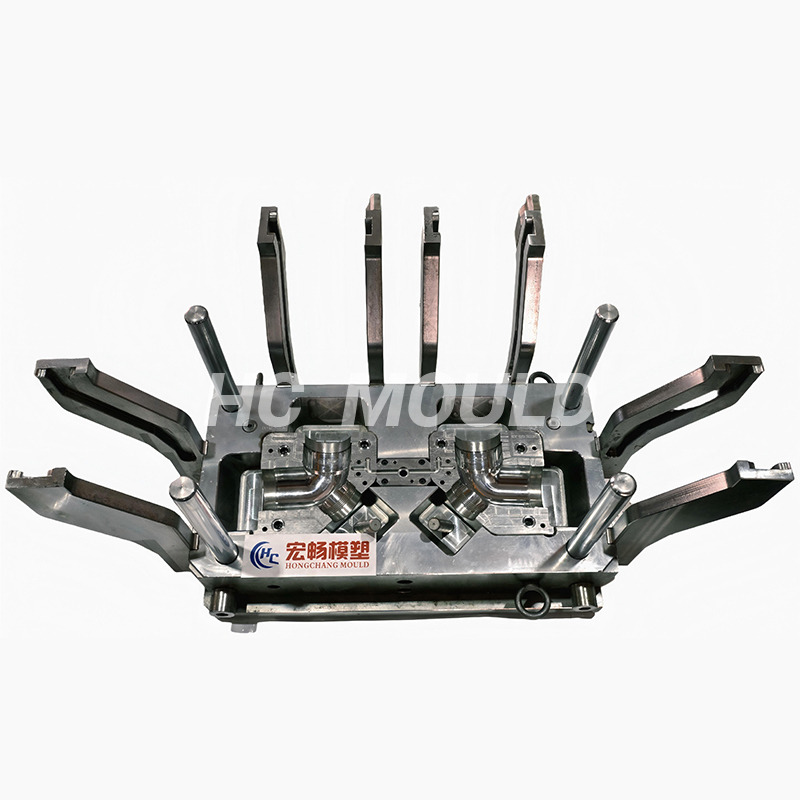

Mould Cavity | Mould Steel | Mould Life | Runner Type | Molding Cycle |
2-cavity | 2316 steel + standard mould base | 1.5 million shots | Cold runner with submarine gate | 100 s |
