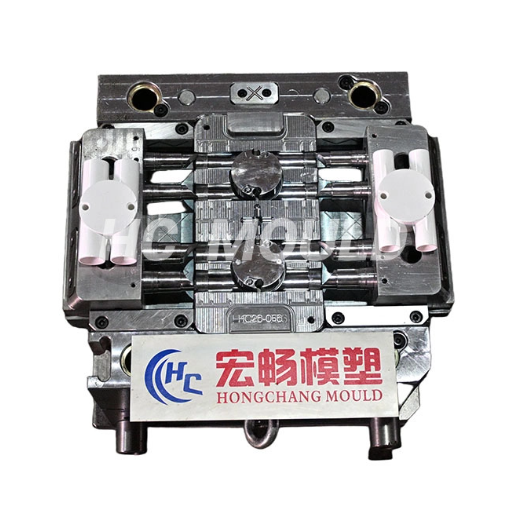

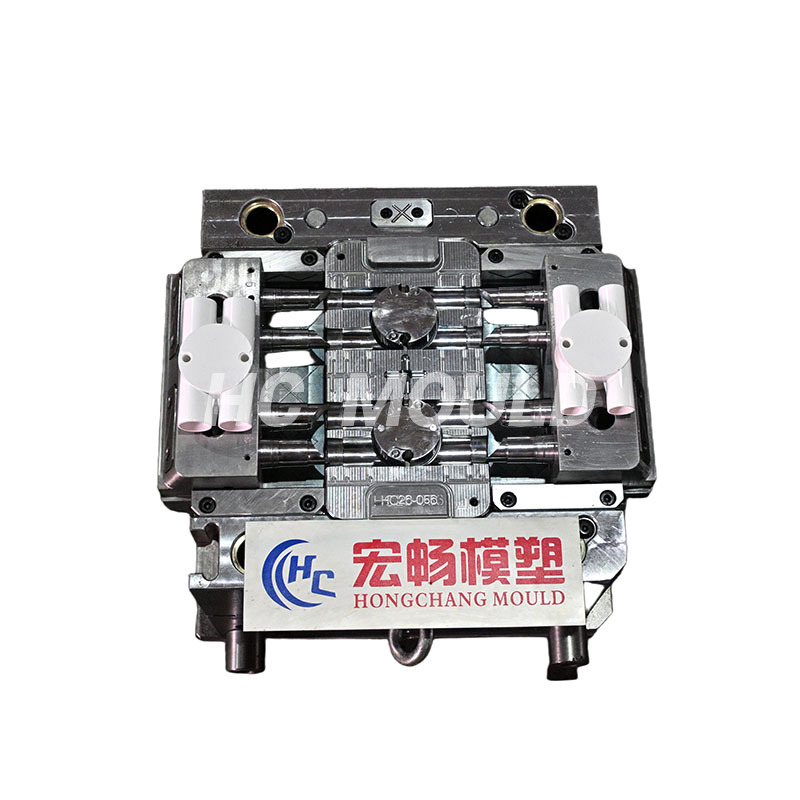

The PVC H-Type 4-Way Electrical Junction Box Mould is a specialized injection mould designed for producing four-way electrical junction boxes used in PVC conduit systems. Also called an H-type junction box mould or cross box mould, it creates fittings that allow multiple conduit routes to connect within concealed electrical wiring systems.
The H-shaped four-way structure enables cables and conduits to branch in different directions while maintaining a protected connection point. Compared with simple conduit connectors, the junction box provides additional internal space for wire connectors, helping electricians complete installation, inspection, and maintenance work more efficiently.
Taizhou Hongchang Mould Technology focuses on customized plastic fitting mould manufacturing for electrical conduit components and related injection molded products. More customized mould solutions can be found through Hongchang Mould Technology.

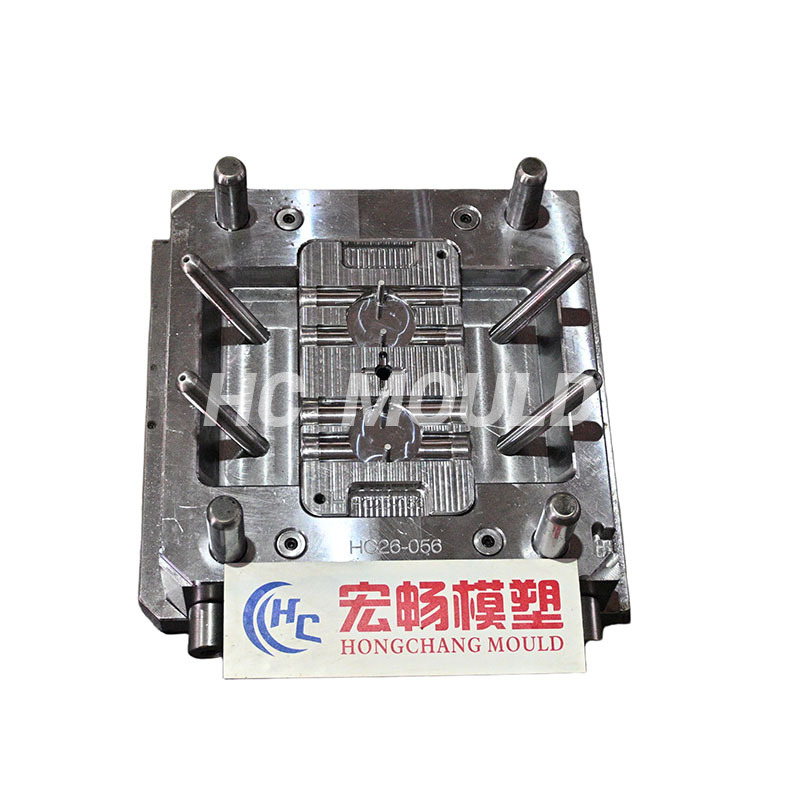

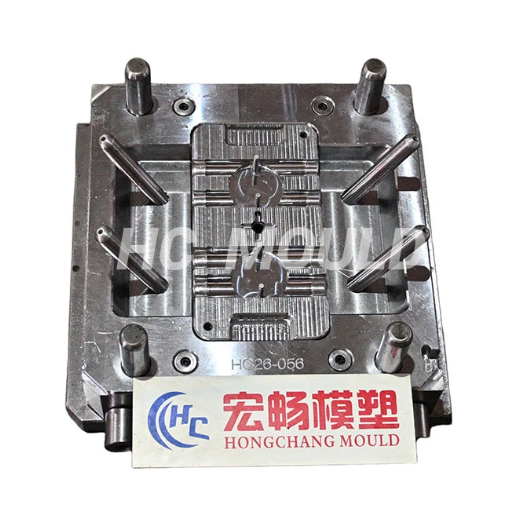

The PVC H-Type 4-Way Electrical Junction Box Mould works through the injection molding process. During production, PVC material is heated and injected into the mould cavity under controlled conditions. The cavity shape determines the final H-type junction box structure, including conduit connection positions, internal space, and cover fitting design.
The mould needs to maintain accurate dimensions and stable forming performance because electrical junction boxes must match conduit sizes precisely during installation. A well-designed mould structure helps manufacturers produce consistent fittings with smooth surfaces and reliable connection performance.
The basic production process includes:
Process | Description |
|---|---|
Material preparation | PVC material is prepared for injection molding |
Injection filling | Melted material enters the mould cavity |
Cooling forming | The junction box takes the designed structure |
Demolding | Finished fitting is removed from the mould |
Quality inspection | Dimensions and appearance are checked |
Through precision mould design, manufacturers can achieve stable production of PVC electrical conduit fittings for different wiring projects.
The PVC H-Type 4-Way Electrical Junction Box Mould is designed according to the requirements of concealed electrical installation systems. Its structure focuses on multi-direction conduit connection, internal space utilization, and production stability.
The main feature of this mould is the H-shaped four-way design, which allows four conduit directions to be connected within one junction point. This structure provides flexibility for complex wiring layouts where multiple cable routes need to meet or separate.
The four-way configuration helps installers organize conduit systems more efficiently and reduces the need for additional connection components in complicated wiring environments.
Key benefits include:
Multi-direction conduit connection
Flexible cable routing
Improved wiring organization
Suitable for concealed electrical systems

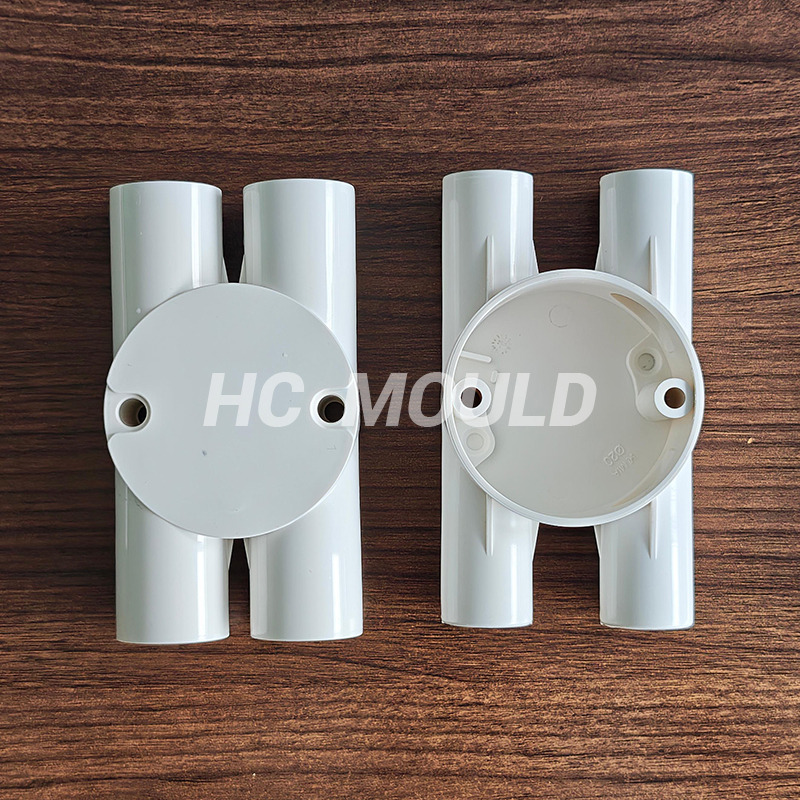

The finished H-type junction box includes a removable cover structure that provides convenient access to internal cable connections. This feature is important for concealed wiring systems where future inspection or maintenance may be required.
The cover design helps electricians:
Check internal wire connections easily
Perform maintenance without damaging surrounding structures
Adjust cable arrangements during system upgrades
Improve long-term installation convenience
PVC electrical fittings are widely used in building wiring systems because PVC provides electrical insulation, corrosion resistance, and stable performance in different construction environments. The mould used for producing these fittings must be designed according to PVC material characteristics.
During mould manufacturing, factors such as cavity precision, cooling efficiency, surface finishing, and ejection structure influence the quality of finished junction boxes. Accurate mould design helps reduce production variations and supports continuous manufacturing.
Hongchang develops mould solutions according to customer drawings, product structures, and production requirements. The company provides different electrical fitting mould solutions through its Products section.
The PVC H-Type 4-Way Electrical Junction Box is mainly used in concealed electrical conduit installations where multiple cable routes need to be connected and protected.
Typical application areas include:
Application | Description |
|---|---|
Residential buildings | Used for concealed home wiring systems |
Commercial buildings | Supports complex electrical layouts |
Office projects | Helps organize multiple conduit routes |
Construction projects | Provides protected wiring connections |
Prefabricated electrical systems | Improves installation efficiency |
The spacious internal structure allows wire connectors to be installed while keeping the conduit system organized and accessible.
Different regions and electrical projects may require different junction box dimensions, conduit connection methods, and structural designs. Customized mould development allows manufacturers to produce H-type junction boxes according to specific market requirements.
Before mould production, customers can provide product drawings, samples, or technical specifications. Hongchang evaluates the product structure and develops suitable mould solutions based on manufacturing requirements.
Common customization factors include:
Custom Item | Description |
|---|---|
Box dimensions | Designed according to installation requirements |
Conduit connection size | Matched with different PVC conduit specifications |
Cover structure | Adjusted for access requirements |
Material requirements | Considered according to application conditions |
Customized solutions help manufacturers produce stable and consistent electrical conduit fittings.
Choosing an experienced mould supplier is important for manufacturers producing electrical conduit components. The mould quality directly affects product consistency, production efficiency, and long-term manufacturing performance.
Taizhou Hongchang Mould Technology specializes in customized plastic fitting mould development. With experience in electrical conduit fittings and injection mould manufacturing, the company provides practical solutions based on customer product requirements.
Main advantages include:
Customized mould design capability
Experience with PVC fitting applications
Focus on mould accuracy and durability
Support for OEM production projects
Flexible solutions for different fitting structures
Customers can explore more mould solutions through the company’s Products page and related plastic fitting mould categories.
A PVC H-Type 4-Way Electrical Junction Box Mould is an injection mould used to manufacture H-shaped junction boxes for PVC conduit systems. It creates four-way connection fittings for concealed electrical wiring applications.
An H-type junction box provides four conduit connection directions, while standard junction boxes usually support fewer connection routes. The H structure is suitable for more complex wiring layouts.
The internal space allows electricians to place wire connectors and manage cable connections while providing easier access for future inspection and maintenance.
Yes. The mould can be customized according to conduit diameter, box dimensions, connection structure, and customer production requirements.
PVC is commonly used for electrical junction boxes because of its insulation properties, corrosion resistance, and suitability for building wiring systems.
Manufacturers should consider mould design experience, customization capability, production quality control, and knowledge of electrical fitting applications.
