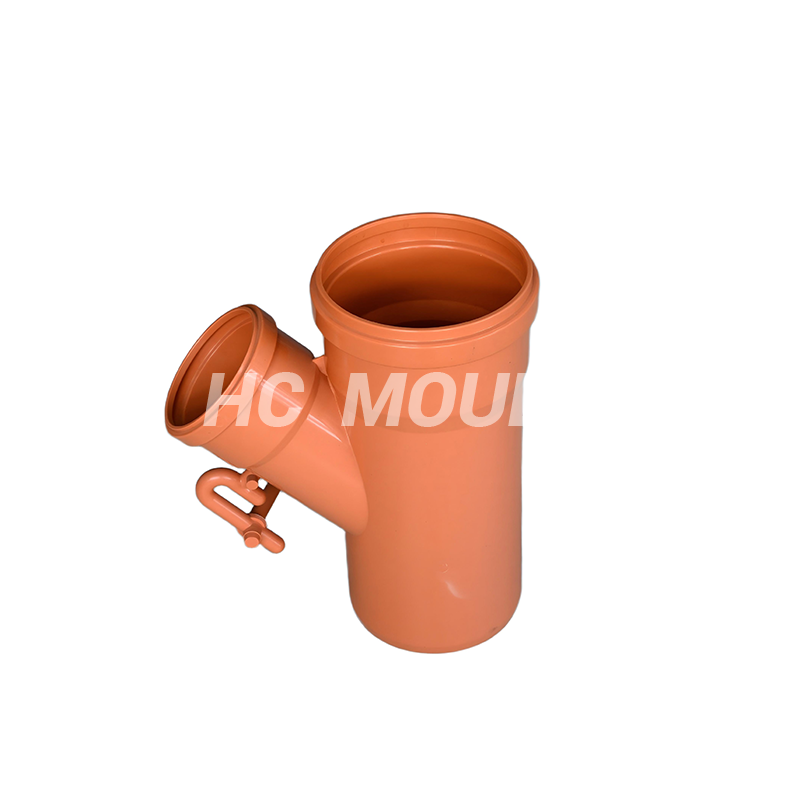

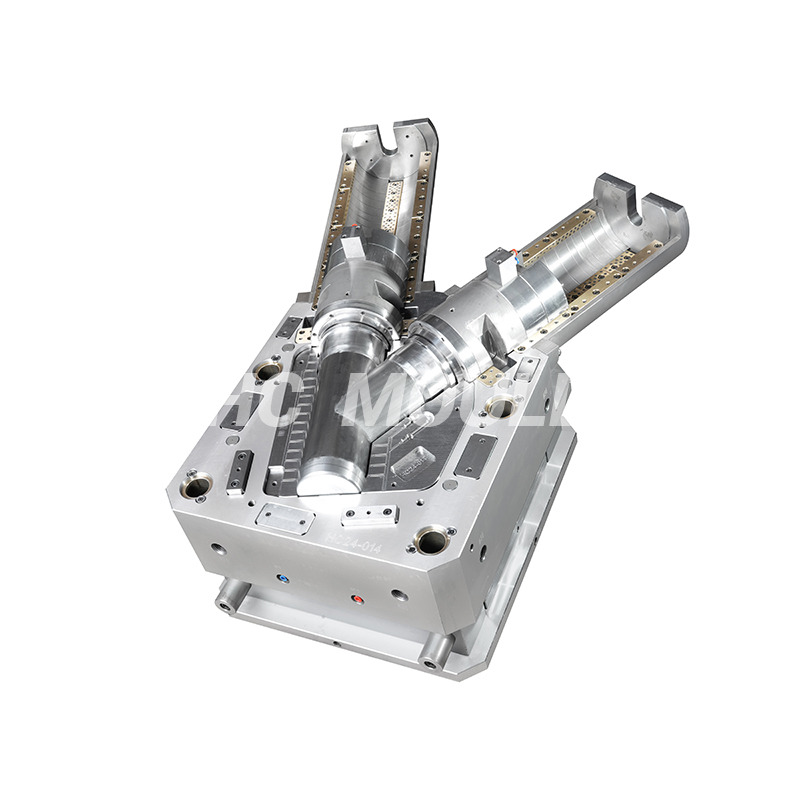

UPVC Socket Oblique Tee (45°60° Y-Branch) Mould

Core Structure & Functions

Streamlined Flow Diversion Branches connect to the main pipe at 45° or 60°, like highway ramps. Water flows smoothly into the main pipe without sharp-angle collision, reducing flow resistance, air lock and noise.

Socket Connection Pipe ends are pre-formed as sockets. Insert plain-end pipes into sockets and apply solvent cement. Precise alignment plus enlarged bonding area creates firm, leak-proof joints.

Material & Benefits

· Virgin PVC-U material:

Lightweight, high strength, corrosion-resistant, scale-resistant and long-lasting.

· Smooth inner wall:

Self-cleaning surface prevents dirt buildup and reduces clogging risks.

· Reinforced socket:

Withstands high drainage pressure and external impact for durable service.

Product Range

· Equal-size socket oblique tee:

Same diameter for main & branch pipe, e.g. 110 mm × 110 mm

· Reducing socket oblique tee:

For transition between different pipe sizes, e.g. 110 mm ×75 mm, 160 mm ×110 mm

· Angles:

Standard 45°, optional 60°

Applications

High-rise building drainage risers:

Minimize water collision, lower noise & blockage risk.

Main sewage junction points:

For combined discharge of shower, basin and washing-machine wastewater .

Toilet & sanitary ware drainage:

45° design reduces flushing resistance for efficient flushing .

Balcony drainage:

Handles debris-laden wastewater, prevents floor drain backflow.
