Core Structure & Functions
Smooth flow diversion:
It guides water for gentle transition. Branch-pipe flow merges along the direction of main-pipe flow and avoids direct impact caused by sharp 90-degree turns.
Lower resistance & noise:
Reduced water impact cuts pipeline noise and lowers the risk of debris build-up and blockage at pipe junctions.

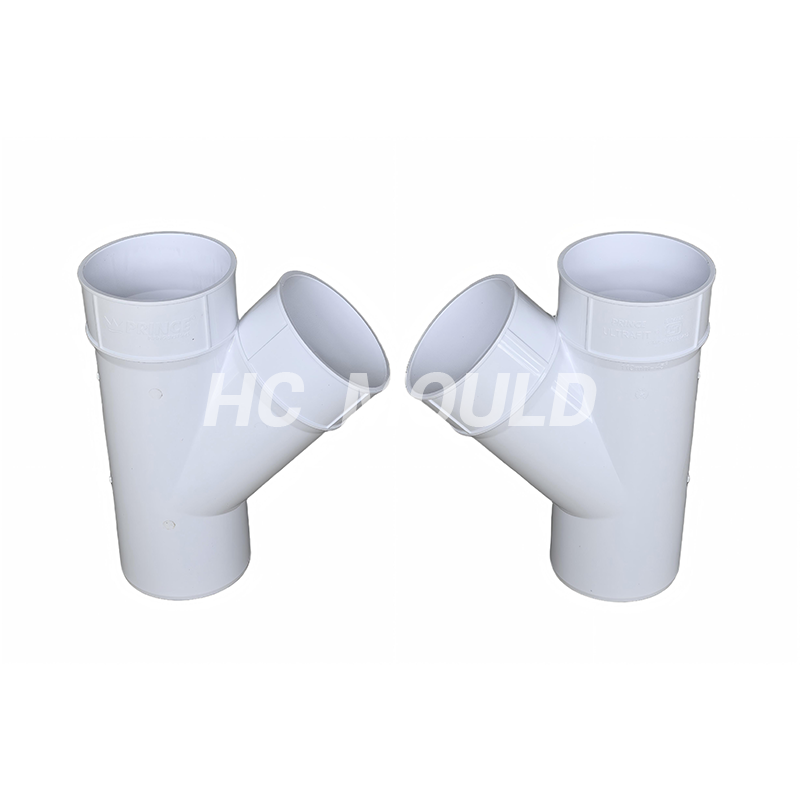

Main Types
· By angle:
45° wye (most common), 60° wye.
· By diameter:
Equal-diameter wye: Main pipe and branch share identical size (e.g. 110mm×110mm).
Reducing wye: Different sizes for main and branch (e.g.110mm×75mm,110mm×50mm), for smooth connection between different pipe sizes.
Material & Performance Advantages
· Made of high-quality PVC-U material. corrosion-resistant, smooth inner wall resisting scale formation, long service life.
· Streamlined inner structure delivers efficient drainage. Ideal for fast-flowing water or wastewater carrying solid debris.
Application Scenarios
High-rise building drain risers:
Mitigate water impact, noise and blockage risk for fast-flowing drainage in high-rises.
Toilet & sanitary ware drainage:
45° wye greatly reduces hydraulic resistance when toilet branch joins main pipe for faster, cleaner flushing.
Balcony drainage systems:
For floor drain and washing-machine drain, enables smooth merging into risers and prevents water back-flow.
Old-building drainage renovation:
Solves noise and blockage issues caused by conventional right-angle tees during system retrofitting.

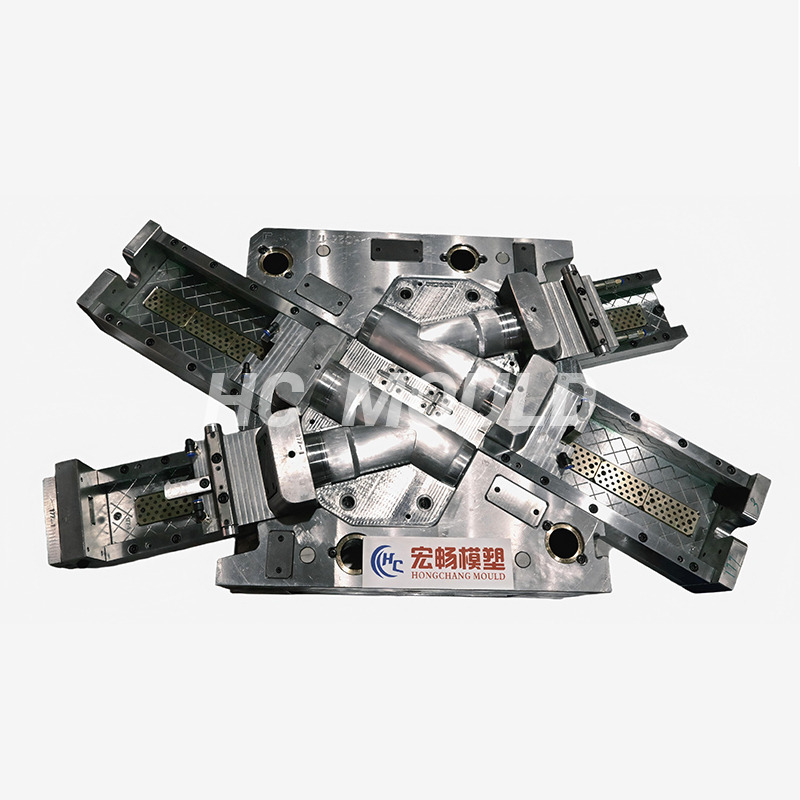

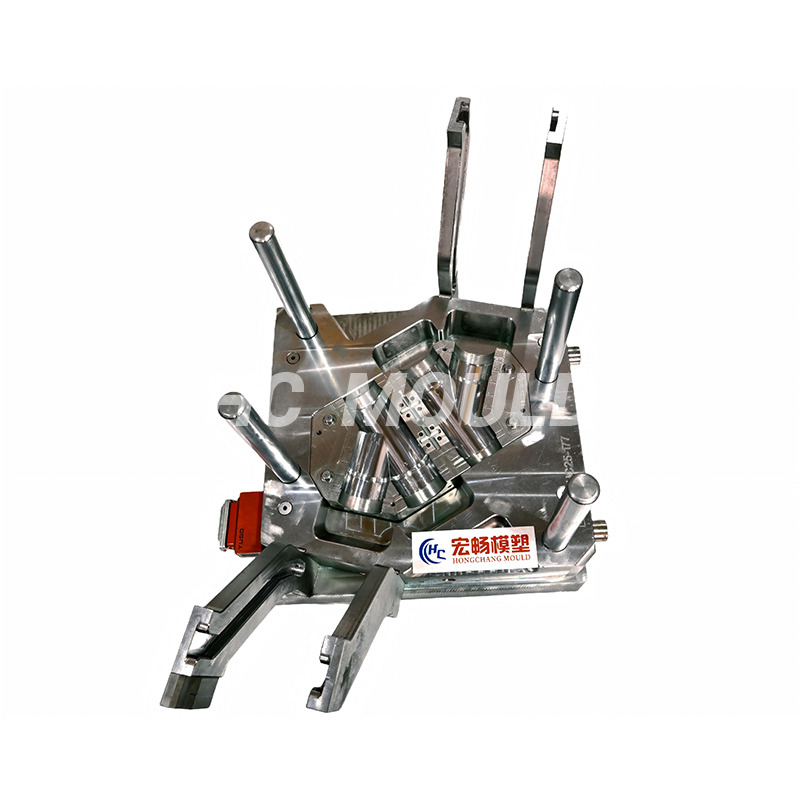

Mould Cavity | Mould Steel | Mould Lifespan | Runner Type | Molding Cycle |
2-cavity | 2316 steel + standard mould base | 1.5 million shots | Cold runner with submarine gate | 100 s |
