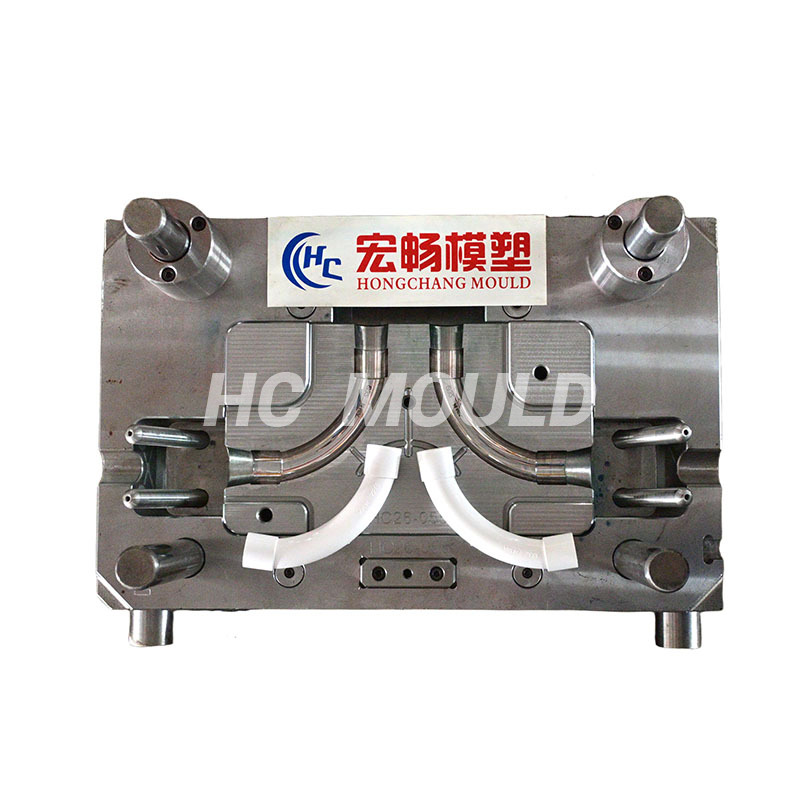

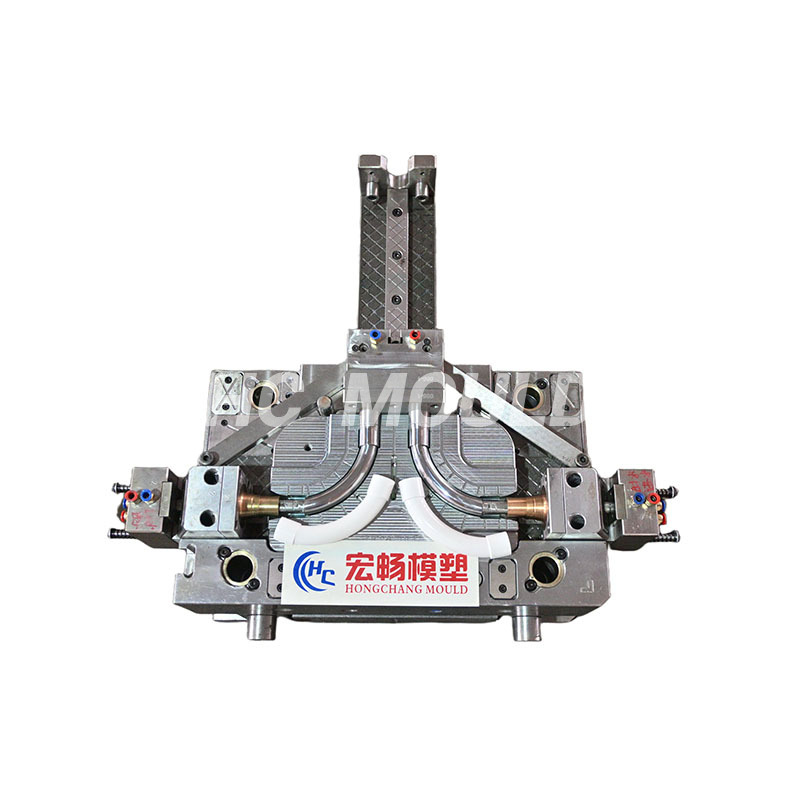

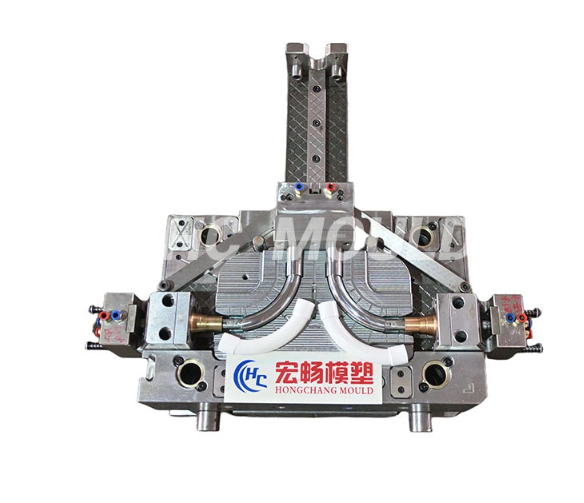

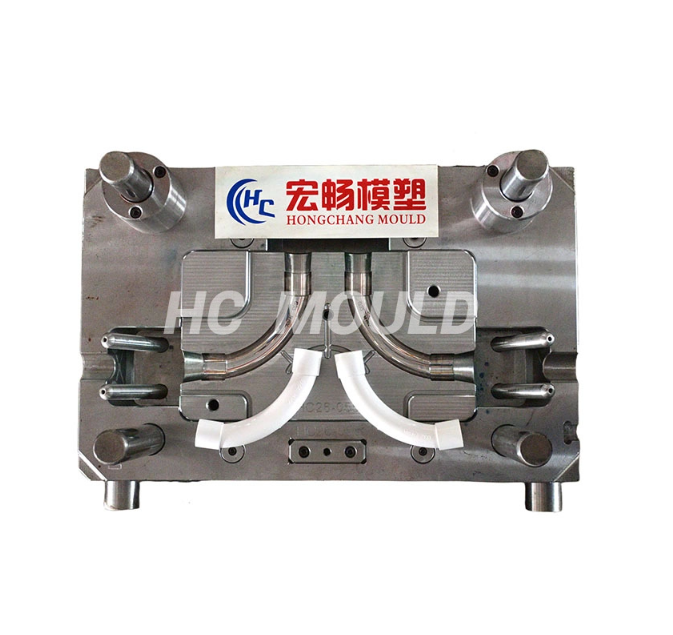

PVC-U Electrical Conduit Long Radius Bend Mould (Big Sweep Elbow Mould)

The PVC-U Electrical Conduit Long Radius Bend Mould (Big Sweep Elbow Mould) is an injection mould designed for manufacturing PVC-U electrical conduit fittings with smooth 90° wide-radius curves. It is mainly used to produce long sweep elbows that help electrical contractors install and maintain cables more efficiently in conduit systems.

Unlike conventional sharp-angle elbows, the big sweep elbow design provides a larger bending radius, reducing cable pulling resistance and avoiding the common “dead wire” problem caused by tight conduit turns. This makes it easier to install new cables, replace existing wires, and complete maintenance work after the electrical system has been installed.

This mould solution is widely applied in electrical conduit production, building wiring systems, prefabricated electrical installations, and infrastructure projects. The mould structure is developed according to PVC-U material characteristics and fitting requirements to ensure stable injection molding performance, accurate dimensions, and consistent product quality.

Taizhou Hongchang Mould Technology specializes in customized plastic fitting mould development and manufacturing. With experience in pipe fitting mould applications, Hongchang provides practical mould solutions for customers producing PVC-U conduit fittings and other plastic components.

Product Overview

The PVC-U Electrical Conduit Long Radius Bend Mould is a specialized injection mould used for producing big sweep elbows designed for electrical conduit systems. The mould creates fittings with a smooth curved structure, allowing electrical cables to pass through conduit pathways with less friction compared with traditional short-radius bends.

In electrical installation projects, conduit fittings need to provide both protection and accessibility for internal cables. A long radius bend helps maintain a smoother cable route, which is especially important for applications requiring future cable replacement, system upgrades, or additional wiring work.

The mould is manufactured according to the required conduit size, bend angle, wall thickness, and connection design. Through accurate cavity processing and suitable mould structures, manufacturers can achieve stable production of PVC-U conduit fittings with consistent appearance and performance.

For customers looking for different plastic fitting mould solutions, Hongchang also provides various PVC Pipe Fitting Mould solutions for different pipe connection applications.

How Does Long Radius Bend Mould Work?

The PVC-U Electrical Conduit Long Radius Bend Mould works through an injection molding process. During production, PVC-U raw material is heated and injected into the mould cavity under controlled pressure. The material fills the cavity shape and forms the designed long-radius bend after cooling and solidification.

The mould design plays an important role in determining the final quality of the electrical conduit fitting. The cavity structure, cooling system, parting design, and demolding method must work together to ensure smooth production and reduce defects during repeated molding cycles.

The basic production process includes:

A properly designed mould helps manufacturers maintain production efficiency while producing conduit fittings with stable dimensions and reliable connection performance.

Key Features of PVC-U Long Radius Bend Mould

Smooth Wide-Radius Conduit Design

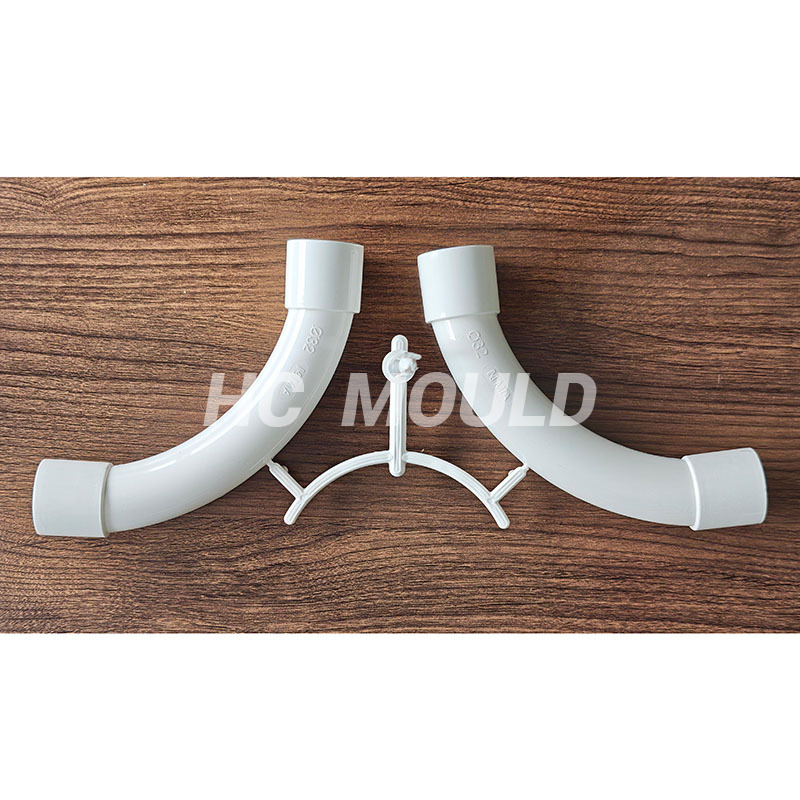

The main feature of the big sweep elbow mould is its wide-radius bending structure. Compared with standard sharp elbows, the produced fittings provide a smoother internal pathway for electrical cables.

This design reduces cable resistance during installation and makes wire pulling easier, especially in long conduit systems or projects where cables may need replacement in the future. It is widely preferred for professional electrical installations that require convenient maintenance and improved cable management.

Precision Injection Mould Structure

A precision injection mould is essential for producing consistent PVC-U conduit fittings. The mould cavity needs to maintain accurate dimensions to ensure the final bend matches the required conduit specifications.

Hongchang focuses on practical mould design, considering product structure, material flow, cooling efficiency, and production stability. This helps manufacturers achieve:

• Consistent product dimensions

• Smooth fitting surfaces

• Stable injection molding cycles

• Reduced production adjustment time

Through professional mould manufacturing experience, Hongchang supports customers with reliable solutions for different plastic fitting applications.

Material and Manufacturing Advantages

PVC-U is commonly used for electrical conduit systems because of its insulation properties, corrosion resistance, and suitability for protecting cables in different environments. The mould used for PVC-U fittings needs to be designed according to the material’s flow characteristics and forming requirements.

During the mould development process, factors such as cavity accuracy, surface finishing, cooling structure, and ejection method influence the final fitting quality. A well-designed mould can help reduce deformation, improve product consistency, and support efficient mass production.

Hongchang develops customized mould solutions based on customer drawings, product samples, and manufacturing requirements. This allows customers to produce different PVC-U conduit components according to their market needs.

For more plastic fitting mould products and manufacturing solutions, customers can visit the Products section of Hongchang’s website.

Applications of PVC-U Long Radius Bend Mould

The PVC-U Electrical Conduit Long Radius Bend Mould is mainly used for manufacturing big sweep elbows applied in electrical conduit systems. These fittings are designed to provide smooth direction changes while maintaining convenient cable installation.

Typical application areas include:

The long-radius design makes these fittings suitable for projects where electrical systems require flexibility, accessibility, and reliable cable protection.

Customization Options for Conduit Fitting Mould

Different electrical conduit projects may require different fitting dimensions, connection structures, and production specifications. A customized PVC-U Electrical Conduit Long Radius Bend Mould allows manufacturers to produce fittings based on their specific product requirements.

Before mould production, customers can provide technical drawings, samples, or product specifications. Hongchang evaluates the fitting structure and develops a suitable mould design according to production conditions.

Common customization factors include:

Customized mould development helps manufacturers achieve better product compatibility and stable production performance.

Why Choose Hongchang PVC-U Electrical Conduit Mould?

Selecting the right mould supplier is important for manufacturers producing electrical conduit fittings. A reliable mould partner can help improve production stability, reduce development risks, and support long-term manufacturing requirements.

Taizhou Hongchang Mould Technology focuses on customized plastic fitting mould manufacturing. The company provides mould solutions based on product design, material characteristics, and customer production goals.

With experience in pipe fitting applications, Hongchang supports customers with:

• Customized mould design and development

• Professional plastic fitting mould manufacturing

• Solutions for different conduit fitting structures

• Support for OEM production requirements

• Stable mould performance for repeated production

By combining technical experience with practical manufacturing knowledge, Hongchang helps customers develop reliable mould solutions for PVC-U conduit fittings.

FAQ

What is a PVC-U Electrical Conduit Long Radius Bend Mould?

A PVC-U Electrical Conduit Long Radius Bend Mould is an injection mould used to produce big sweep elbow fittings for electrical conduit systems. It creates smooth-radius bends that help cables pass through conduits more easily.

What is the difference between a long radius bend and a standard elbow?

A long radius bend has a larger curve compared with a standard elbow. The wider curve reduces cable pulling resistance and makes future cable replacement easier.

Why are big sweep elbows used in electrical conduit systems?

Big sweep elbows provide smoother cable pathways, helping installers pull wires more efficiently and reducing difficulties caused by tight conduit turns.

Can this mould be customized for different conduit sizes?

Yes. The mould can be customized according to conduit diameter, bend radius, product structure, and customer production requirements.

What material is used for producing electrical conduit bends?

PVC-U is commonly used for electrical conduit fittings because it provides insulation performance, corrosion resistance, and suitable durability for cable protection applications.

How does mould quality affect PVC-U conduit fittings?

Mould accuracy affects product dimensions, surface quality, and production consistency. A properly designed mould helps manufacturers produce stable and reliable fittings.
