PVC Y-Type Electrical Conduit Junction Box

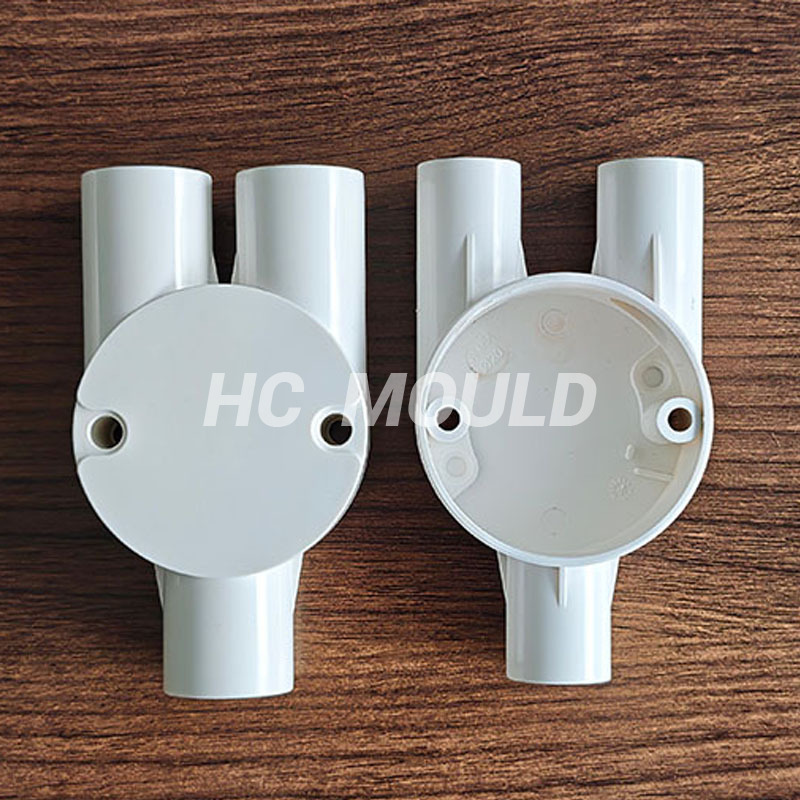

The PVC Y-Type Electrical Conduit Junction Box, also known as Y branch box, Y tee junction box, or Y pulling box, is a specialized fitting designed for PVC electrical conduit systems. With its three-way Y-shaped structure, it allows one conduit route to split into two branch directions, providing a practical solution for cable routing, transition, and joint protection.

Compared with traditional conduit connection methods, this Y-type structure provides more flexibility for complex wiring layouts. It helps electricians organize cable pathways, simplify installation processes, and improve accessibility for future cable inspection or replacement. The removable cover design further improves maintenance convenience, especially for concealed electrical wiring applications.

This product is widely used in residential buildings, commercial construction projects, prefabricated electrical installations, and other wiring systems where reliable conduit branching is required. Taizhou Hongchang Mould Technology provides customized plastic fitting mould solutions for manufacturers producing PVC conduit fittings and other injection molded components. Learn more about the company through Hongchang Mould Technology.

How Does PVC Y-Type Electrical Conduit Junction Box Work?

The PVC Y-Type Electrical Conduit Junction Box works as a branching component within an electrical conduit system. During installation, one conduit enters the main opening of the Y box, while two additional conduit paths extend from the branch openings. This structure allows cables to change direction and split into different wiring routes.

The junction box provides protection for cable connection areas while maintaining an organized conduit layout. The internal space helps prevent excessive cable bending and allows installers to manage multiple wiring directions more effectively.

The general installation process includes:

The Y-type structure is especially useful in electrical systems where multiple cable routes need to branch from a single conduit line.

Key Features of PVC Y-Type Electrical Conduit Junction Box

The PVC Y-Type Electrical Conduit Junction Box is designed according to practical electrical installation requirements. Its structure focuses on flexible routing, connection protection, and convenient maintenance.

Three-Way Y-Shaped Branch Structure

The main feature of this junction box is the three-way Y-shaped configuration. Unlike standard straight conduit fittings, it allows one conduit route to divide into two additional directions, making it suitable for more complex electrical layouts.

This design helps installers create cleaner wiring systems and reduces the need for complicated conduit arrangements. It is commonly used in concealed electrical installations where space utilization and cable routing flexibility are important.

The Y branch structure provides:

• Flexible cable direction changes

• Improved conduit organization

• Easier installation planning

• Better adaptability for different wiring layouts

Removable Cover Design

The removable cover allows convenient access to the internal junction area after installation. This feature is valuable for electrical systems that may require inspection, modification, or maintenance in the future.

Compared with fully enclosed fittings, a cover-access design provides greater convenience for electricians while maintaining protection for internal cable connections.

The removable cover supports:

• Easier cable inspection

• Simplified maintenance work

• Convenient system upgrades

• Improved installation flexibility

Material and Manufacturing Advantages

PVC is widely used in electrical conduit fittings because of its insulation properties, corrosion resistance, and suitability for construction environments. The mould used to produce PVC conduit junction boxes needs to provide accurate dimensions and stable injection molding performance.

During mould manufacturing, factors such as cavity precision, cooling efficiency, surface finishing, and demolding structure influence the final product quality. A well-designed mould helps manufacturers maintain consistent product dimensions and reduce production variations.

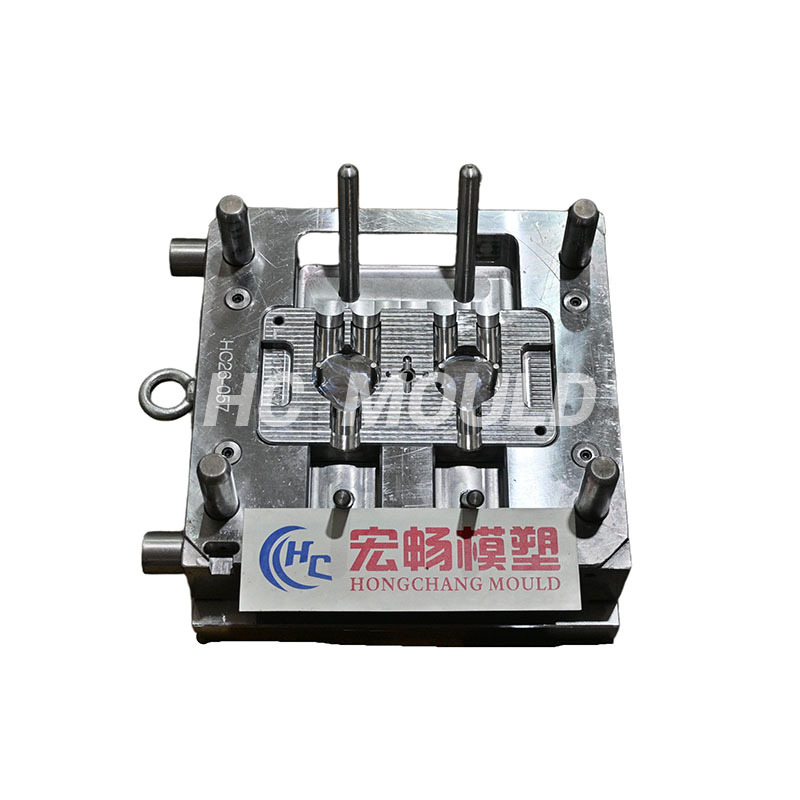

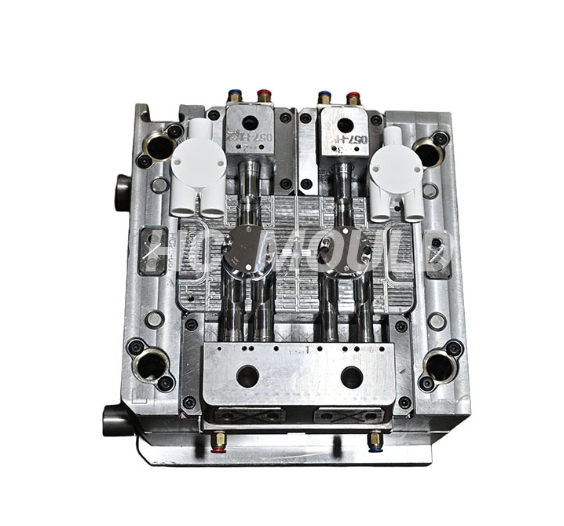

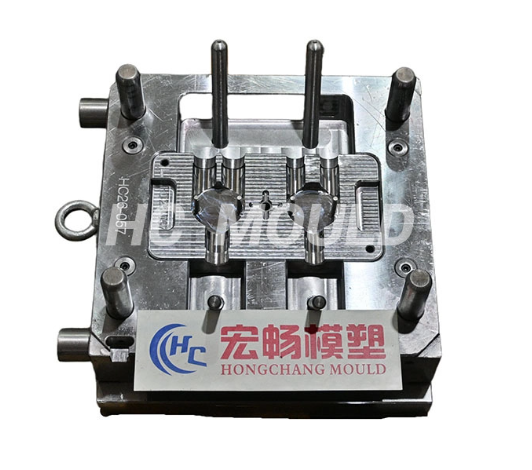

Hongchang develops customized plastic fitting mould solutions according to customer drawings, product samples, and production requirements. The company focuses on practical mould structures that support stable production and reliable finished fitting performance.

For more customized fitting solutions, customers can visit the Products section of Hongchang’s website.

Applications of PVC Y-Type Electrical Conduit Junction Box

The PVC Y-Type Electrical Conduit Junction Box is widely used in electrical conduit systems where cable branching and connection protection are required. Its compact structure and flexible routing capability make it suitable for different building and infrastructure applications.

Typical application areas include:

In modern construction projects, electrical conduit systems need to support both current wiring requirements and future maintenance needs. The Y-type junction box provides a practical connection solution for these situations.

Customization Options for Electrical Conduit Junction Box Mould

Different regions and electrical projects may have different requirements for conduit sizes, fitting structures, and installation methods. Customized mould development allows manufacturers to produce PVC Y-Type Electrical Conduit Junction Boxes according to specific market demands.

Before mould production, customers can provide product drawings, samples, dimensions, or technical requirements. Hongchang evaluates the product structure and develops a suitable mould design based on the production application.

Common customization factors include:

Customized mould solutions help manufacturers achieve stable production while meeting specific customer requirements.

Why Choose Hongchang PVC Electrical Fitting Mould?

Selecting a reliable mould supplier is important for manufacturers producing electrical conduit components. The quality of the mould directly affects production efficiency, product consistency, and long-term manufacturing costs.

Taizhou Hongchang Mould Technology specializes in customized plastic fitting mould development and manufacturing. With experience in conduit fittings and injection mould applications, Hongchang provides solutions based on customer product requirements and production conditions.

The company supports customers with:

• Customized mould design and development

• Plastic fitting mould manufacturing experience

• Solutions for different conduit component structures

• Support for OEM production requirements

• Stable mould performance for repeated production

Through professional mould manufacturing capability, Hongchang helps customers develop reliable electrical conduit fitting products for residential, commercial, and industrial applications.

FAQ

What is a PVC Y-Type Electrical Conduit Junction Box?

A PVC Y-Type Electrical Conduit Junction Box is a conduit fitting designed to split one electrical conduit route into two branch directions. It helps organize cable pathways and provides protection for wiring connections.

What is the purpose of a Y branch box in electrical wiring?

A Y branch box allows cables to be routed into different directions from a single conduit line. It is commonly used when electrical systems require flexible cable distribution.

Why does the PVC Y-Type Junction Box use a removable cover?

The removable cover provides access to the internal connection area, making cable inspection, maintenance, and future wiring adjustments easier.

Can this junction box mould be customized?

Yes. The mould can be customized according to product dimensions, conduit sizes, connection structures, and customer production requirements.

Where are PVC Y-type conduit junction boxes used?

They are commonly used in residential buildings, commercial projects, industrial facilities, and concealed electrical wiring systems.

What information is required to manufacture a PVC junction box mould?

Customers usually provide product drawings, dimensions, material requirements, samples, and expected production quantities for mould design and development.
